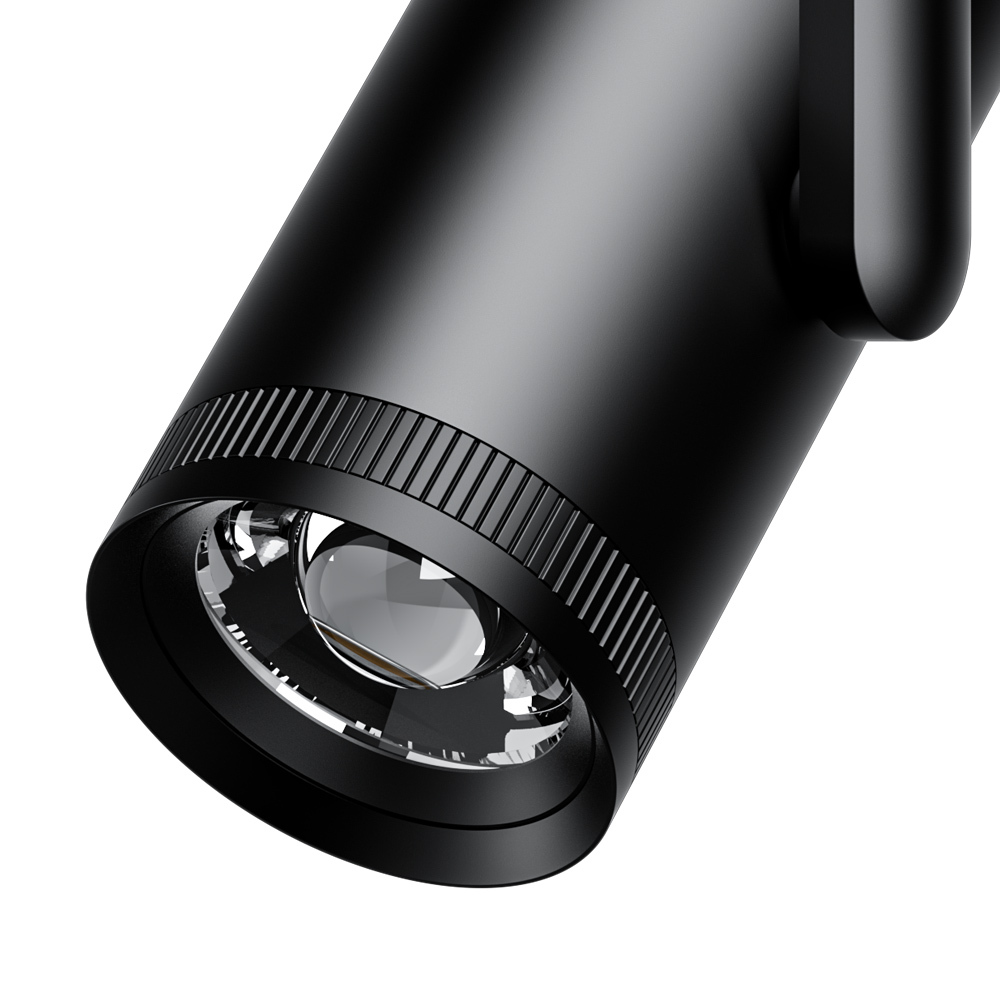

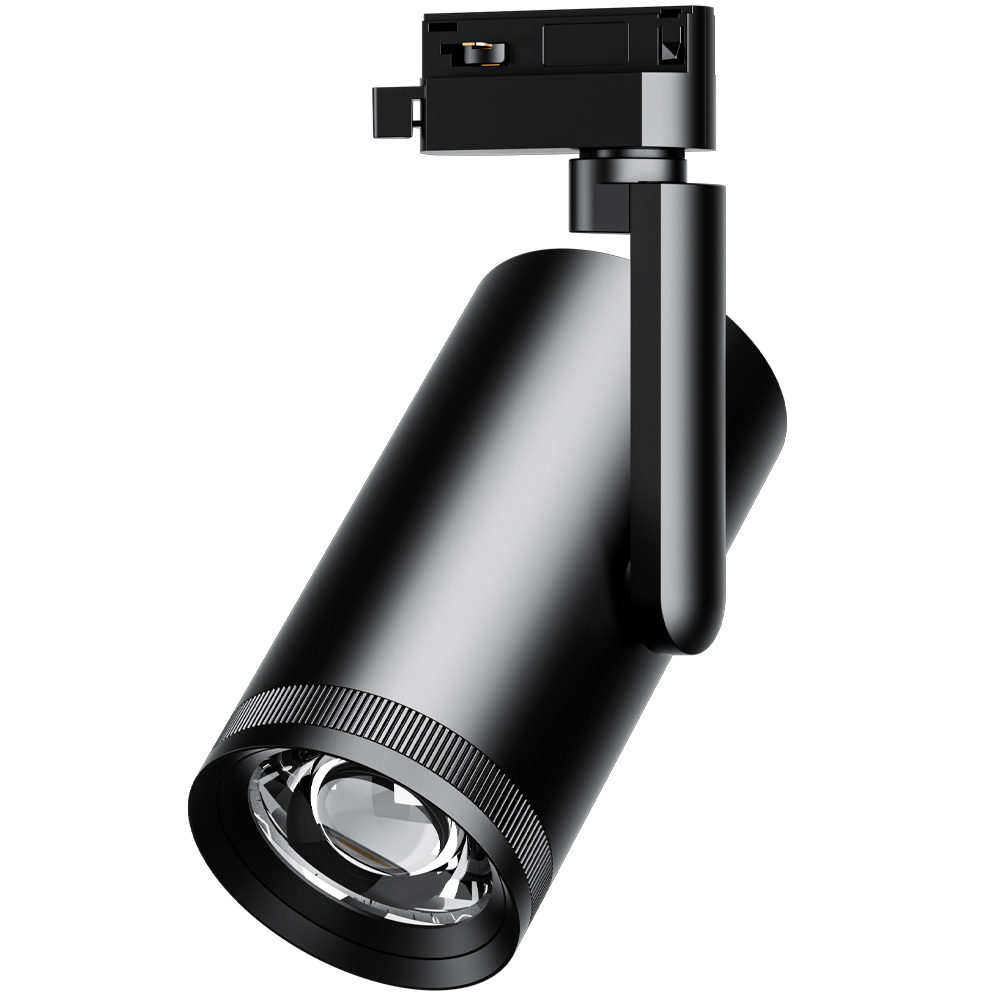

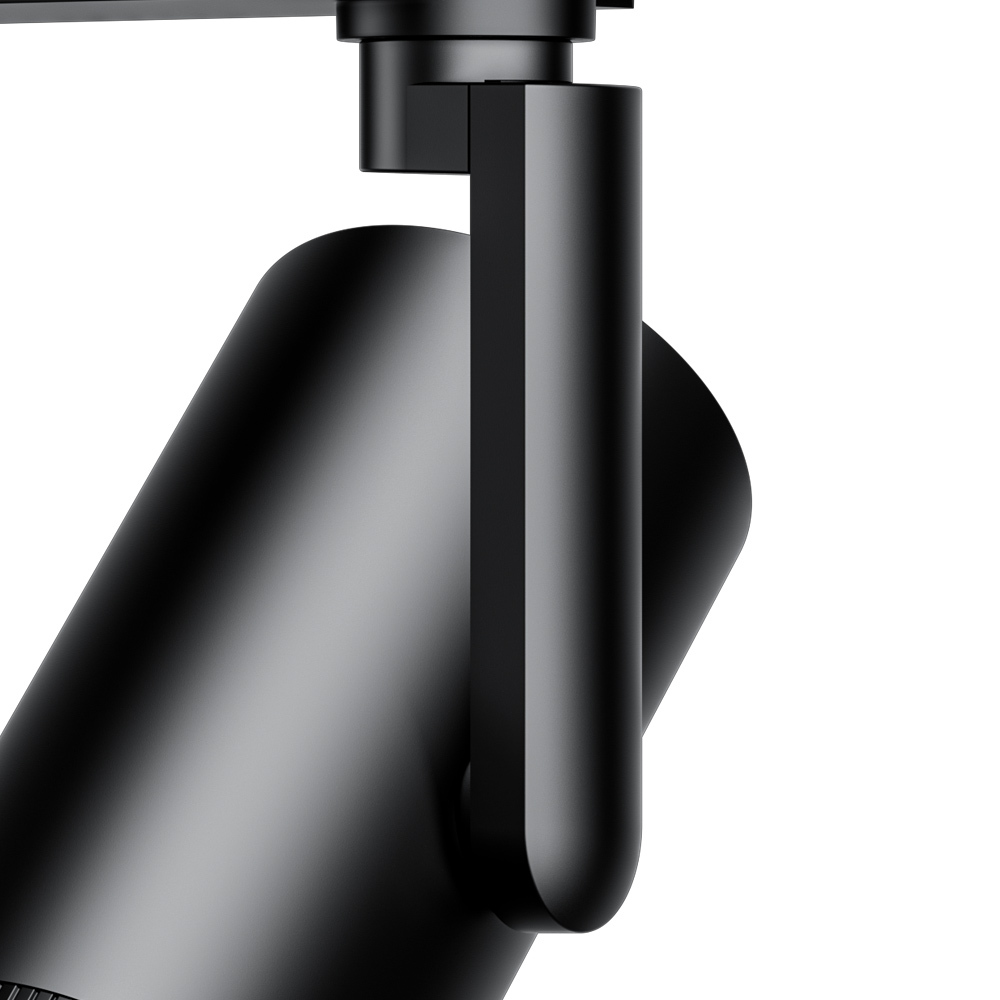

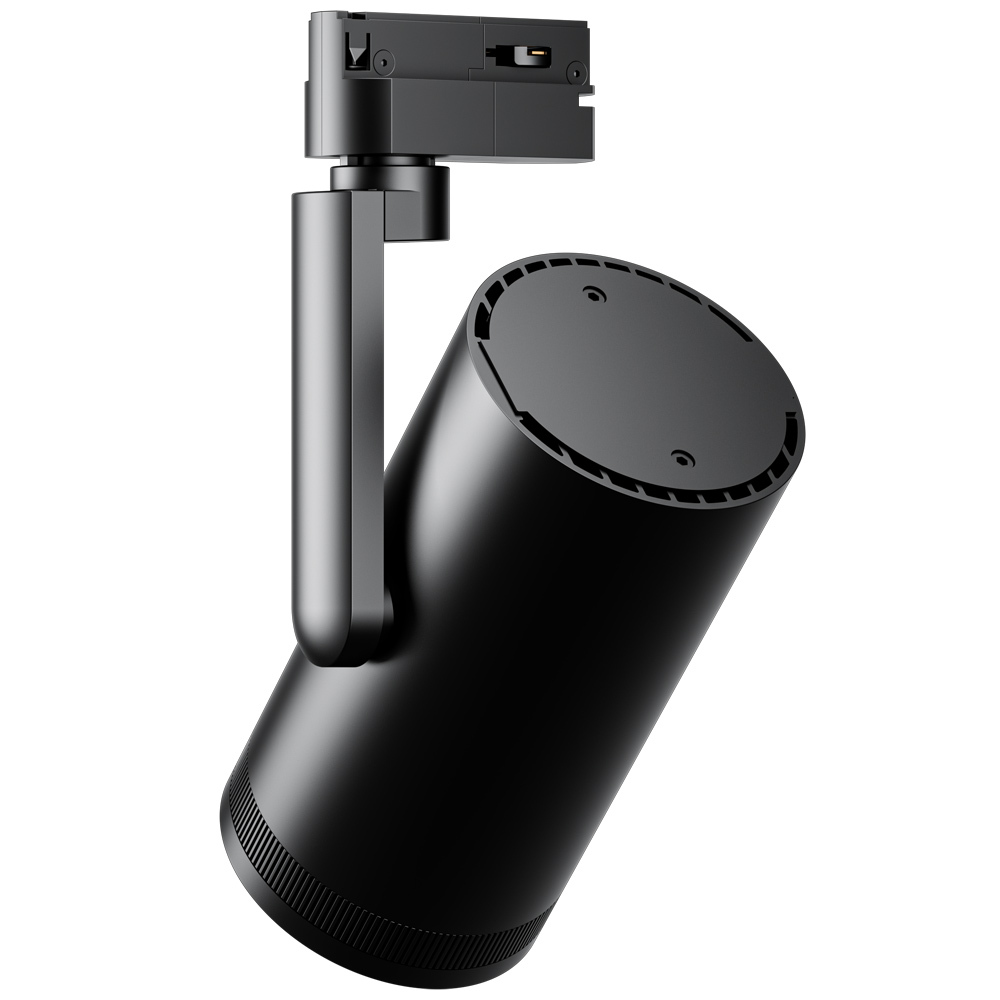

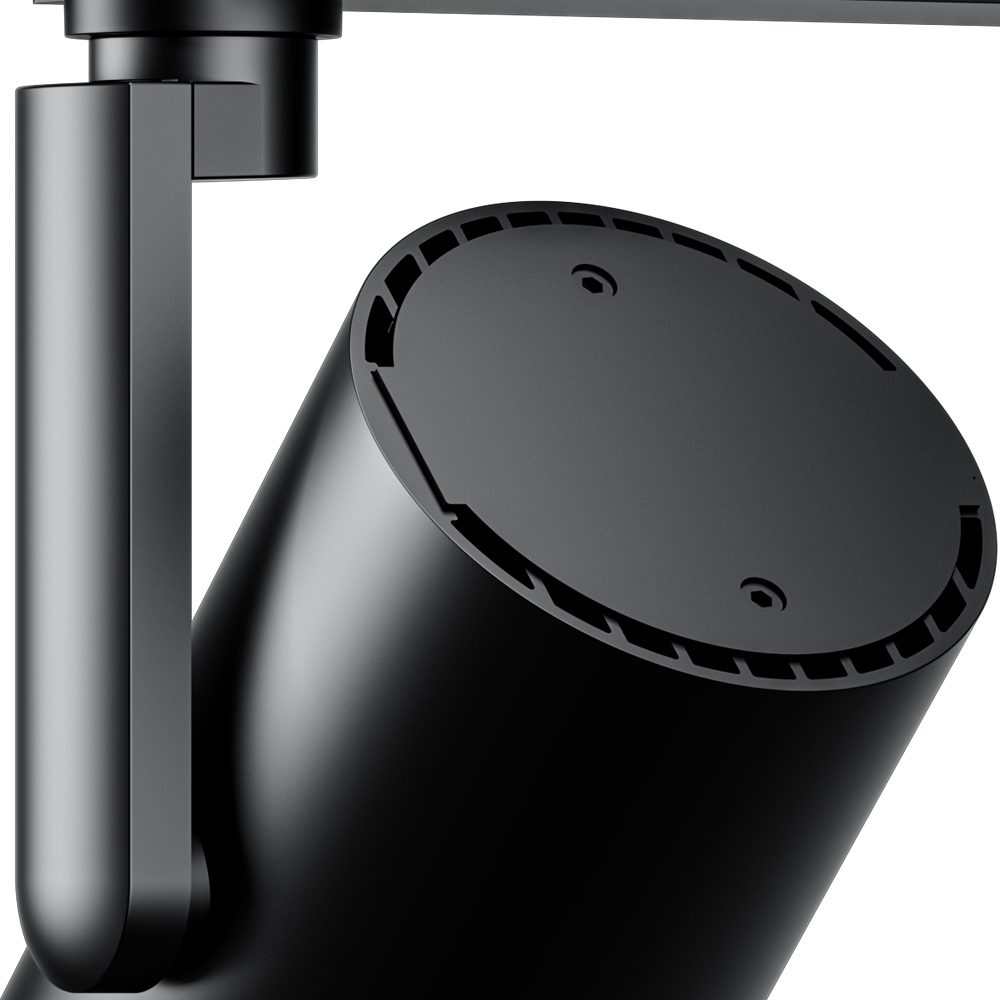

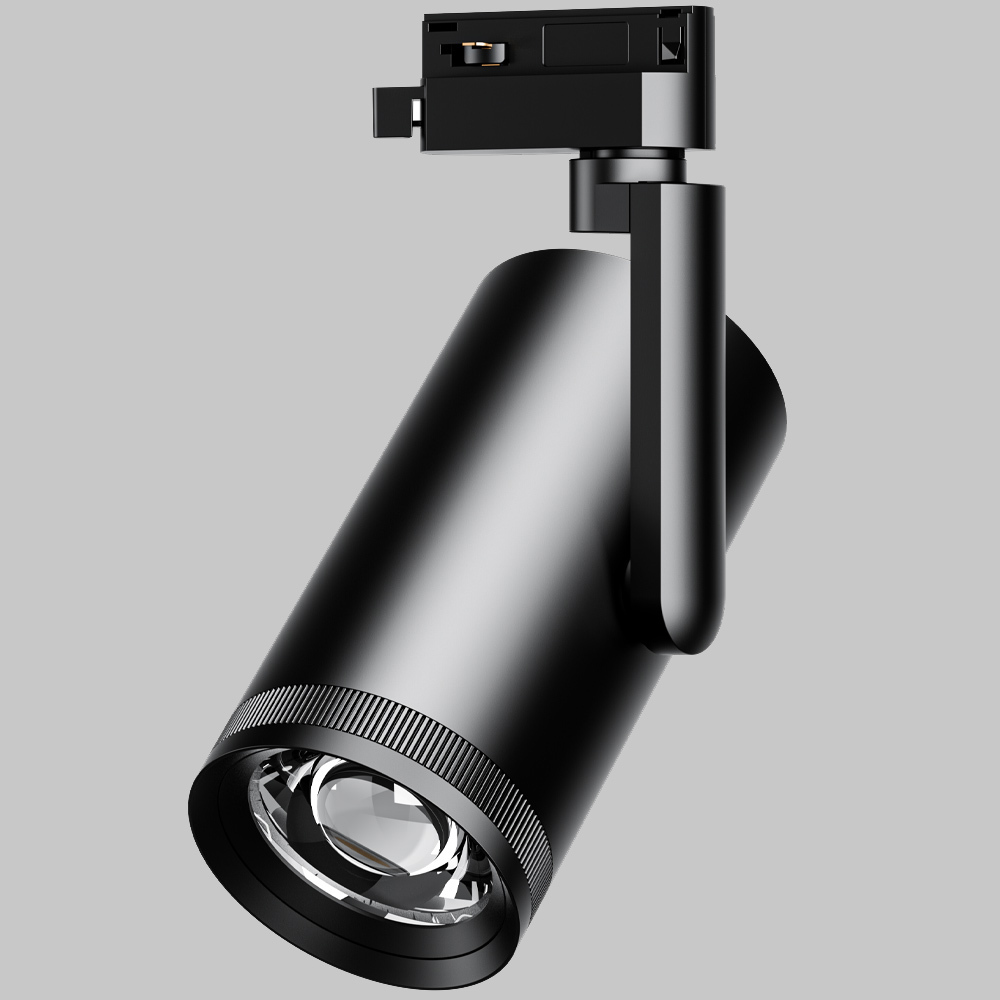

TS-TR36WG
36W LED Zoomable Museum Track Light
Technical Datas:
Product code: TS-TR36WG
Power (wattage): 36W
Base: Two Phase(2/3 wires) or Three Phase(Four wires) OR Magnetic Track Adaptor
Input voltage: 220-240V AC 50/60HZ, 85-265VAC
LED Driver: Lifud / Eaglerise
Flicker Free: Yes
Anti Glare: Yes
Zoomable: Yes (15-60 degrees zoomable)
Dimmable: Avaliable (Triac, 0-10V, Dali)
LED source: COB 36W Bridgelux chip
LED quantities: 1pc
Light Color: (27/30/40/50/60) x100K Warm/ Neutral / Cool
LED Lumens: 3600lm+/-3%
LED CRI: >95Ra
Beam angle: 15°-60°
IP Rate: IP40
Body Color: Sandy White/ Sandy Black
Materials: Aluminium body
Size (dimension): D85xH165MM (Not including Adaptor and driver box )
Operating Temp.: -30 ~ 75℃
Life Span: 50000 Hours
Cetificates: CE-EMC, CE-LVD, RoHS, FCC, C-tick
|
|
|
|
|
|
| Model No. | TS-TR10WG | TS-TR20WG | TS-TR30WG | TS-TR36WG |
| Wattage | 10W | 20W | 30W | 36W |
| Adaptor Base | 2 Phase (2 wires / 3 wires ), 3 phase ( 4 wires ) | |||
| Input Voltage | 85-265V AC 50/60 Hz | |||
| Power Factor | PF > 0.95 | |||
| LED Source | 12W Bridgelux COB | 24W Bridgelux COB | 30W Bridgelux COB | 36W Bridelux COB |
| CCT | Warm White (2700-3500K), Neutral White(4000-4500K), Cold White(5000-6500K) | |||
| Lumens | 1000lm | 2000lm | 3000lm | 3600lm |
| CRI | CRI > 90 (Ra) | |||
| Beam Angle | 15° / 24° / 36° / 60° | |||
| LED Driver | Lifud / Eaglerise Brand | |||
| IP Rate | IP40 | |||
| Material | Aluminium Body + PMMA Lens | |||
| Size(not include adaptor) | D55*H140mm | D65*H147mm | D75*H159mm | D85*H165mm |
| Body Color | Sandy Black / Sandy White | |||
| Operating Temp. | -30℃ ~ 75℃ | |||
